Steel Cord Conveyor Belt
General purpose steel cord conveyor belt is widely used in coal, mine, port, metallurgy, electric power, chemical industry and other fields. It is suitable for conveying massive, granular and powder materials in high-strength, long-distance and large volume situations.
Product Details
Technical Parameters
Company Overview

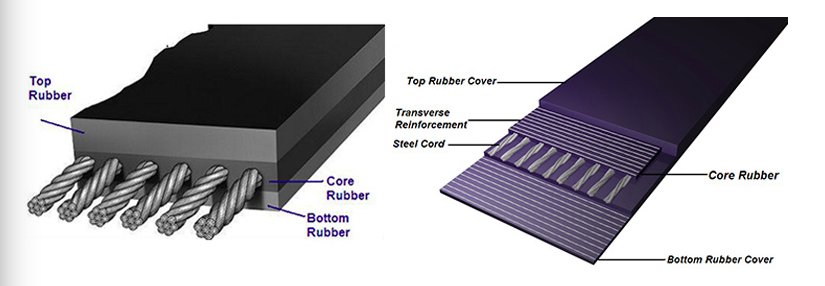

Product Structure
General purpose steel cord conveyor belt is composed of top coating layer, bottom coating layer, steel wire rope, adhesive layer and edge rubber.
Product Features
Our product has the characteristics of high tensile strength, impact resistance, good elasticity, high wear resistance, small elongation, high adhesion between rubber and steel cord, even tension of steel cord rope, good troughability, etc. It is suitable for conveying massive, granular and powdery materials in high-strength, long-distance and large traffic situations.
Product Use
General purpose steel cord conveyor belt is widely used in coal, mine, port, metallurgy, electric power, chemical industry and other fields. It is suitable for conveying massive, granular and powder materials in high-strength, long-distance and large volume situations.
Executive Standard
China GB/T9770 Standard
Germany DIN22131 Standard
UK EN ISO15236 Standard
Japan JISK6369 Standard
Australia AS1333 Standard
Technical Data of Steel Cord Conveyor Belt
Technical Data Specification |
ST630 |
ST800 |
ST1000 |
ST1250 |
ST1600 |
ST2000 |
ST2500 |
ST3150 |
ST3500 |
ST4000 |
ST4500 |
ST5000 |
ST5400 |
ST6300 |
Tensile Strength(N/mm) | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 3500 | 4000 | 4500 | 5000 | 5400 | 6300 |
Max Diameter of Cord(mm) | 3.0 | 3.5 | 4.0 | 4.5 | 5.0 | 6.0 | 7.5 | 8.1 | 8.6 | 8.9 | 9.7 | 10.9 | 11.3 | 12.3 |
Pitch of Cord(mm) | 10 | 10 | 12 | 12 | 12 | 12 | 15 | 15 | 15 | 15 | 16 | 17 | 17 | 18 |
Top Rubber Cover Thickness(mm) | 5 | 5 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8 | 8 | 8.5 | 9 | 10 |
Bottom Rubber Cover Thickness(mm) | 5 | 5 | 6 | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8.5 | 9 | 10 |
Weight(kg/m2) | 18 | 19.5 | 22.5 | 24 | 25.9 | 31.8 | 36.1 | 40.4 | 43.8 | 45 | 45.1 | 50.7 | 53.4 | 59.6 |
Width(mm) | Cord Number | |||||||||||||
800 | 75 | 75 | 63 | 63 | 63 | 63 | 50 | 50 | 50 | |||||
1000 | 95 | 95 | 79 | 79 | 79 | 79 | 64 | 64 | 64 | 64 | 59 | 55 | 55 | 54 |
1200 | 113 | 113 | 94 | 94 | 94 | 94 | 76 | 76 | 77 | 77 | 71 | 66 | 66 | 63 |
1400 | 133 | 133 | 111 | 111 | 111 | 111 | 89 | 89 | 90 | 90 | 84 | 78 | 78 | 74 |
1600 | 151 | 151 | 126 | 126 | 126 | 126 | 101 | 101 | 104 | 104 | 96 | 90 | 90 | 85 |
1800 | 171 | 143 | 143 | 143 | 143 | 114 | 114 | 117 | 117 | 109 | 102 | 102 | 96 | |
2000 | 159 | 159 | 159 | 159 | 128 | 128 | 130 | 130 | 121 | 113 | 113 | 107 | ||
2200 | 176 | 141 | 141 | 144 | 144 | 134 | 125 | 125 | 118 | |||||
Cover rubber property and grades
Test Item | Property indexes | |||||||
GB9770-2001 | DIN22131 | |||||||
D | H | L | P | W | X | Y | ||
Tensile strength | Mpa≥ | 18 | 25 | 20 | 14 | 18 | 25 | 20 |
Elongation | %≥ | 400 | 450 | 400 | 350 | 400 | 450 | 400 |
Abrasion | ≤ | 90mm3 | 120mm3 | 150mm3 | 200mm3 | 90mm3 | 120mm3 | 150mm3 |
Aging test (70℃×168h) |
% |
It shall not be less than 75% of the corresponding value before aging.
| ||||||
Recommended Min.Pulley Diameter
Type | ST630 | ST800 | ST1000 | ST1250 | ST1600 | ST2000 | ST2500 | ST3150 | ST3500 | ST4000 | ST4500 | ST5000 | ST5400 | ST6300 |
Min.Diameter of Pulley （mm） | 500 | 630 | 800 | 1000 | 1250 | 1400 | 1500 | 1600 | 1800 | |||||
