Chevron Conveyor Belt
According to the pattern shape, it can be divided into: chevron shaped, opening V-shaped , closing V-shaped, U-shaped, multi-V or other complex pattern structure.
The height of the pattern is 5mm, 8mm, 10mm, 15mm, 17mm, 20mm, 25mm, 32mm. The belt width is 300-1600 mm. The pattern shape can be specially designed according to customer’s requirement.
Product Details
Technical Parameters
Company Overview
Product Classification
According to the pattern shape, it can be divided into: chevron shaped, opening V-shaped , closing V-shaped, U-shaped, multi-V or other complex pattern structure.
The height of the pattern is 5mm, 8mm, 10mm, 15mm, 17mm, 20mm, 25mm, 32mm. The belt width is 300-1600 mm. The pattern shape can be specially designed according to customer’s requirement.
Product Features
Integral vulcanization, more favorable for heavy duty applications.
Suitable for different material, it can be choose based on actual needs.
New chevron profile can be designed to meet your needs.
Belt width from 400mm-1400mm with different patterns.
Product Use
It is widely used in powder, granule and small material transportation of 16-45 degree dip angle, and can also be used to transport packaging materials, it is suitable for the fields of coal, mine, port, metallurgy, electric power, chemical industry, etc.

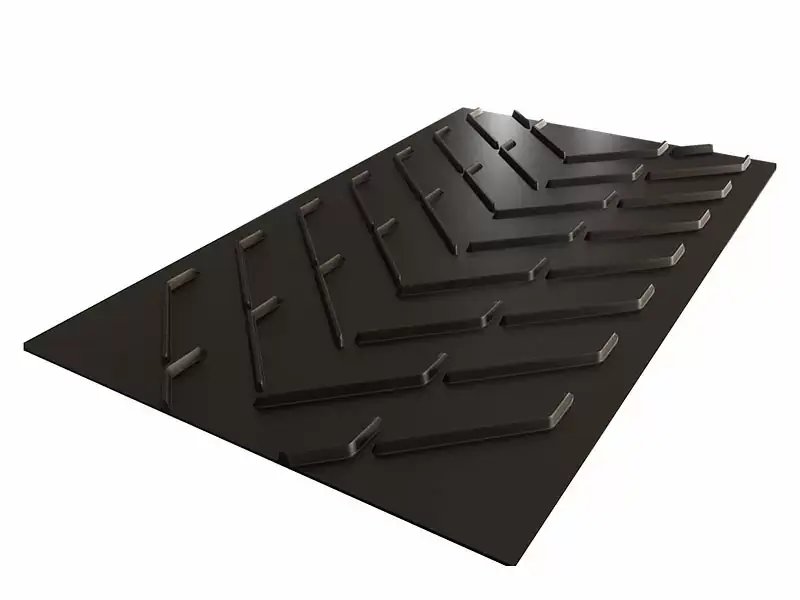

Type: C17P440 / C17P630 / C17P750

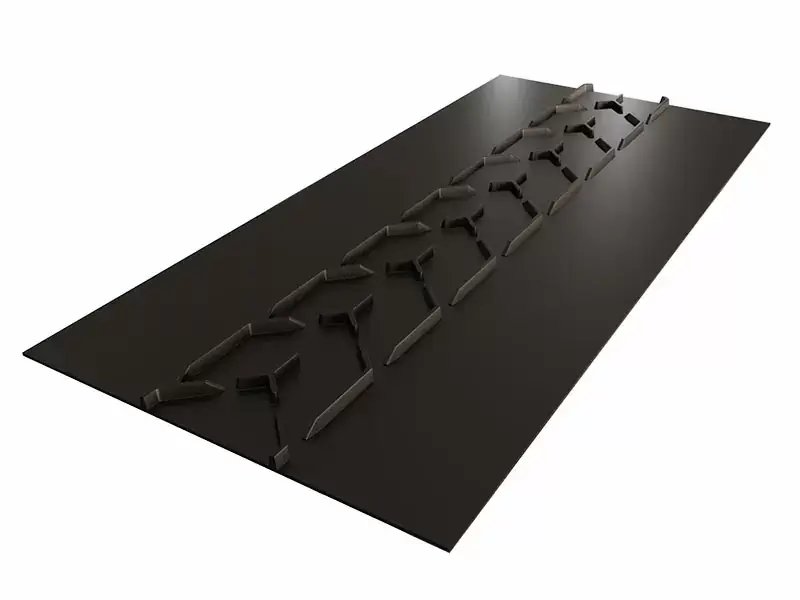

Type:C25P330 / C25P330 /C25P440

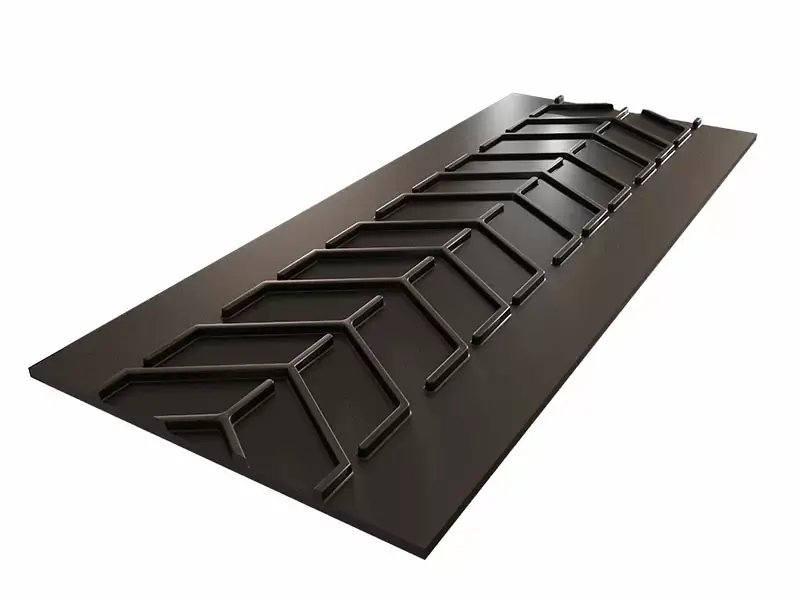

Type:C32P1000

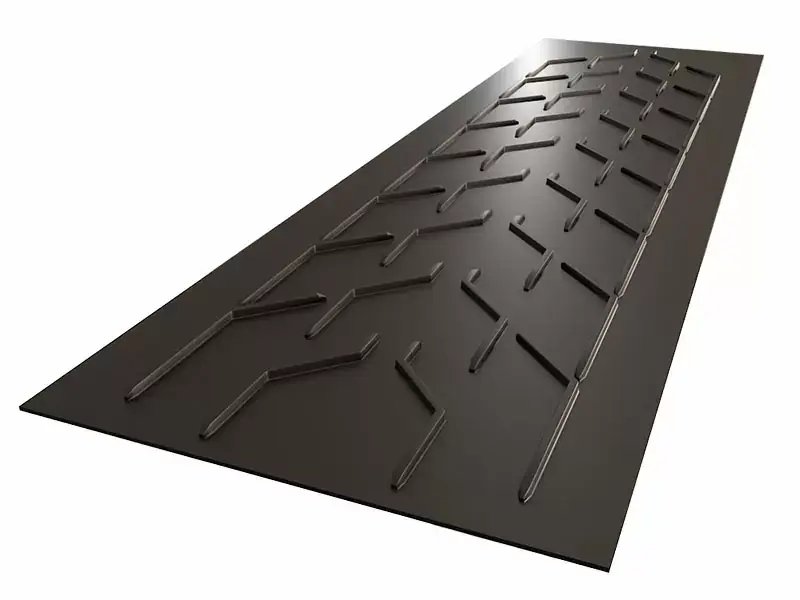

Type:C10P700 Closed V / C15P400 Closed V / C15P550 Closed V

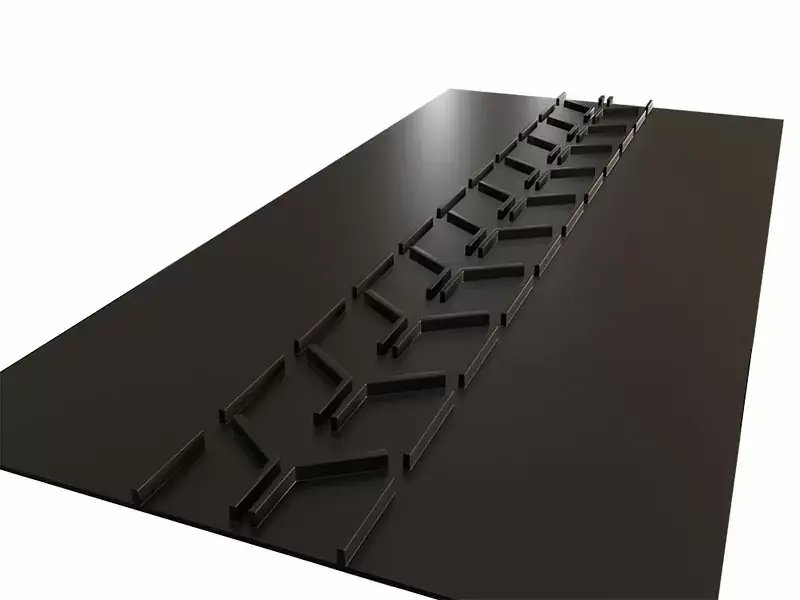

Type:C25P500 / C25P800

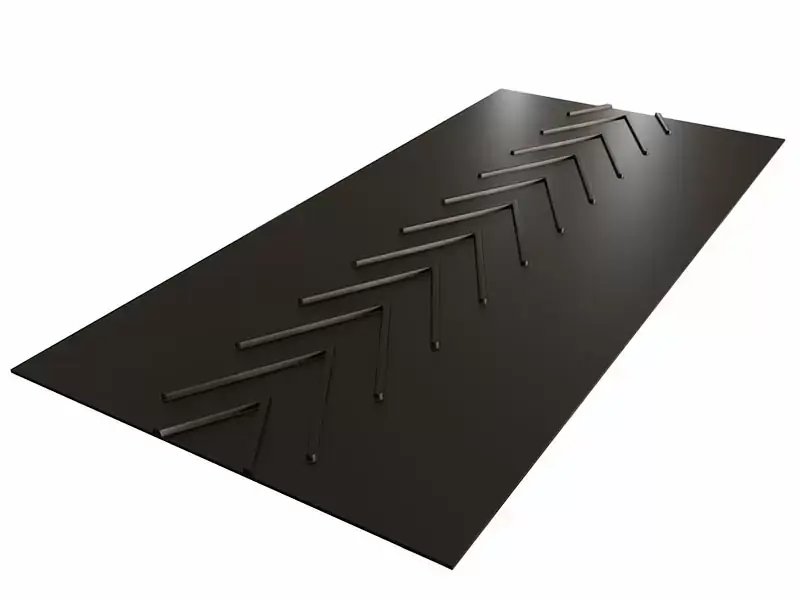

Type:Y32P600 / Y32P600c
FAQ
Q1. How about your experience?
We have mainly produced rubber conveyor belts for over 20 years.
Q2. What are your main products?
Multi-ply fabric conveyor belt(EP/NN type), steel cord conveyor belt, chevron conveyor belt, sidewall belt, white conveyor belt, bucket elevator belt, filter belt, and special conveyor belts with the characteristics of heat resistant, cold resistant, oil resistant, flame retardant, abrasion resistant, etc.
Q3. What about the lead time?
1) 3--5 days for sample.
2) 20--25 days for mass production. If urgent, we have the green channel.
Q4. Can you send free samples?
Yes, we provide samples for free after inquiry.
Q5. How about the package?
Standard export packing method, your special requirement will be respected.
Q6. What are your Payment terms?
T/T or L/C.
Q7. Can you do door-to-door?
No problem.
Q8. How do you ensure your product quality?
Our quality control system had been ISO9001 certified. The first-class production equipment, testing facilities, and a complete quality assurance system guarantee high quality.
Q9. What is your major market?
Our products are heavily involved in exporting all over the world, including Europe, America, the Middle East, Southeast Asia, South Africa, Australia, etc.
Q10. What you can do to support me better?
We can provide products that meet quality standards, timely delivery, transportation packaging requirements, and customers' other special requirements.
